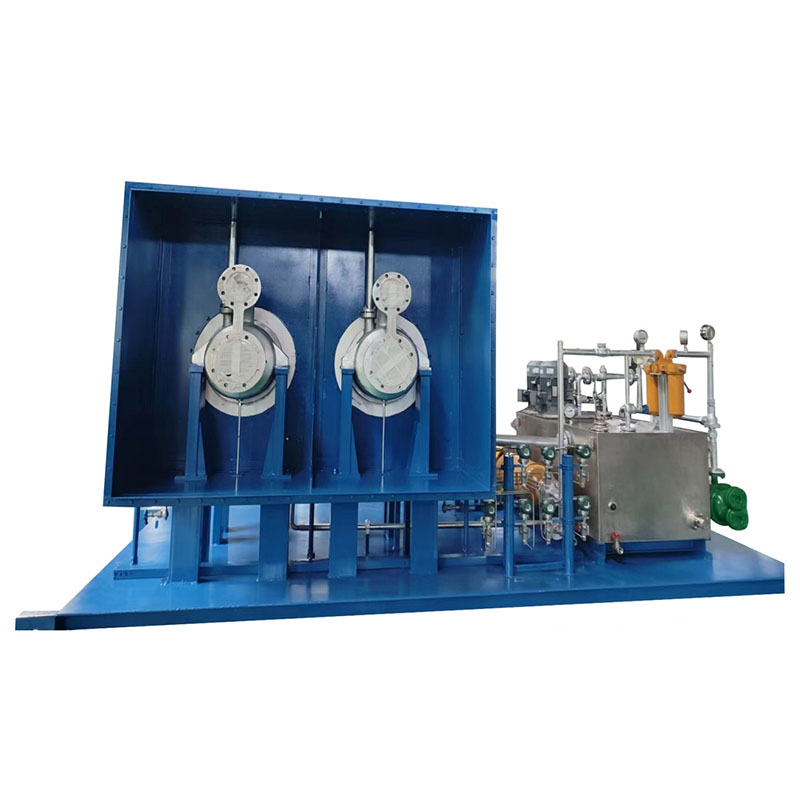

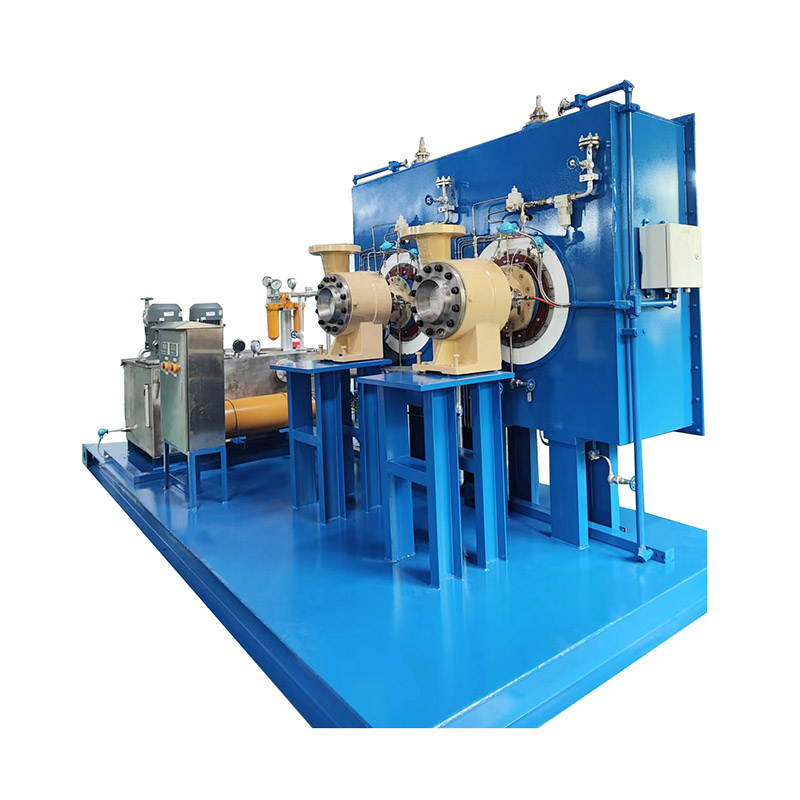

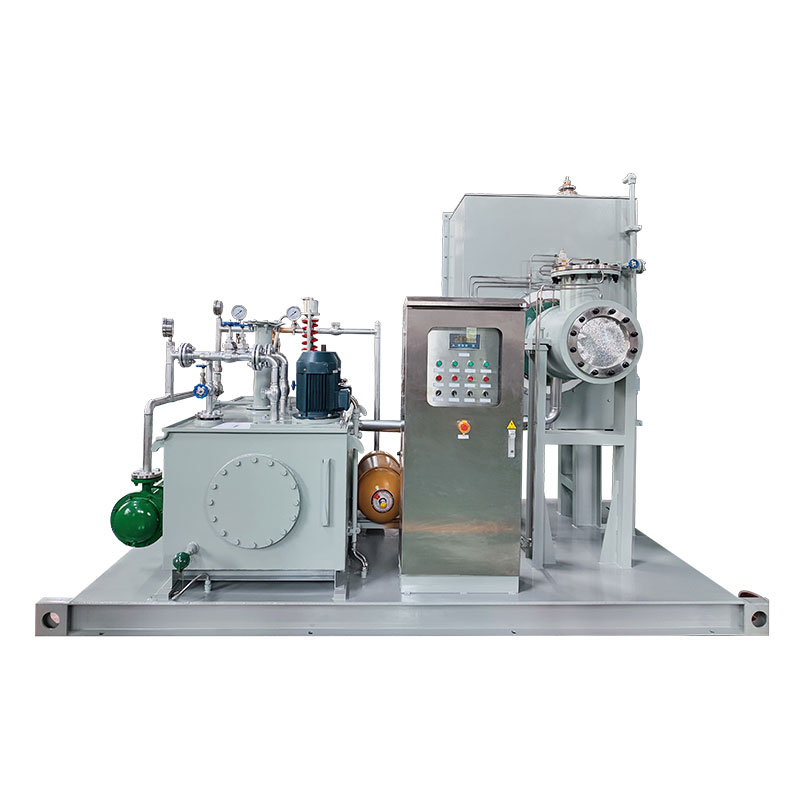

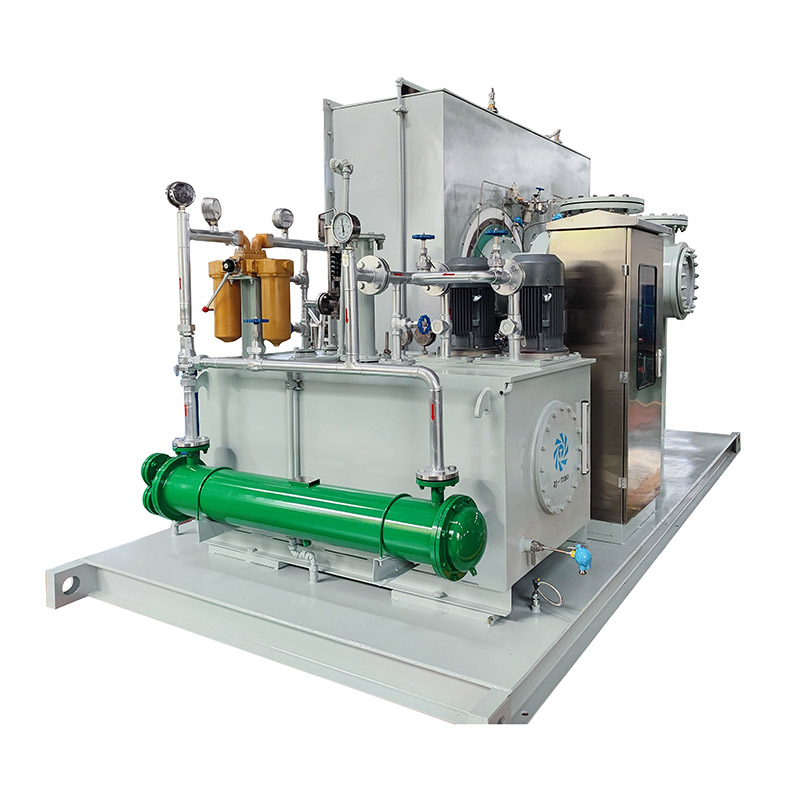

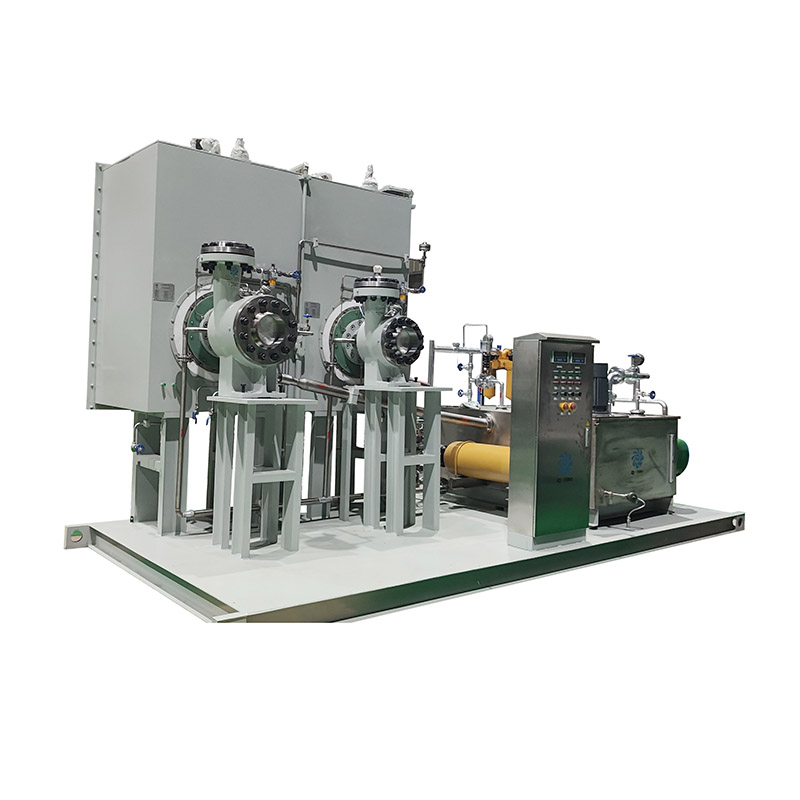

Expander With Compressors Brake

Short Description:

● Warm unit and cold unit
● Provide refrigeration for air separation,natural gas liquidation,hydrocarbon recovery, industrial tail gas recovery, ethylene cold box,and other cryogenic process.
● Gas including Air, Nitrogen, Hydrogen, Natural Gas and other Hydrocarbon Gases
● Flow rate: 4000~126500Nm3/h (up to 126500Nm3/h ASU)·
● Pressure Range: 0.2-10 MPa
● Temperature Range: -260-200°C
● Expander Efficiency: up to 93%
● Power up to 5000 kw
● Shaft Speed: 10.000-100,000 rpm/min
● Impeller Size: 60-800mm (one piece forged closed impellers)

Product Detail

Product Tags

Product profile:

Compressor loaded expanders with oil lubricated bearings. The expander and compressor wheels are mounted on a common shaft and the energy recovered from the expansion is powering the compressor wheel that can be used as a booster compressor.
It meets key needs in many of industrial processes becuase of efficiency, a smaller footprint and faster installation times.
